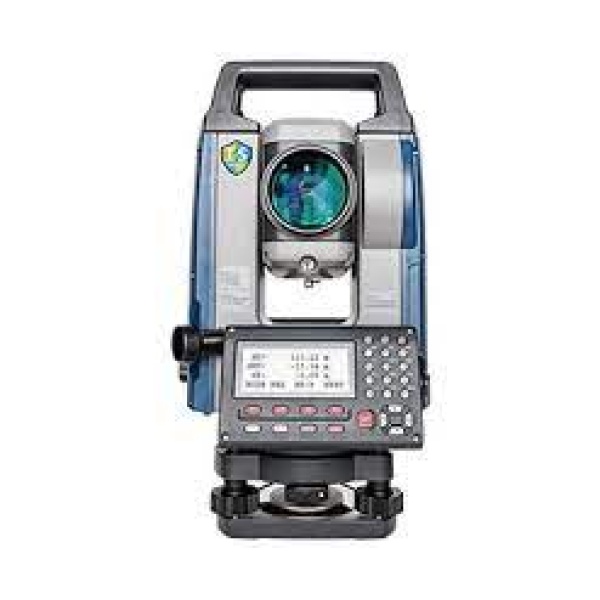

Name: Sokkia iM-100 series Reflectorless Total Station with Single Display, Bluetooth, and Laser Plummet
Brand: Sokkia
SKU: 1018763-08
Availability: InStock

Telescope
Magnification / Resolving Power: 30x / 2.5”
Others: Length: 171mm (6.7in)
Objective aperture: 45mm (1.8in) (48mm (1.9in) for EDM)
Image: Erect
Field of view: 1°30’ (26m/1000m)
Minimum focus: 1.3m (4.3ft)
Reticle illuminations: 5 brightness levels
Angle Measurement
Display Resolution: 0.5”/1” or 1” / 5” Depending on model
Accuracy (ISO 17123-3-2001): 1”, 2”, 3”, or 5” depending on model
Dual-axis compensator / Collimation compensation: Dual-axis liquid tilt sensor, working range ±6’ (±111 mgon)/ Collimation compensation available
Distance Measrement
Laser output: Reflectorless mode: Class 3R / Prism / sheet mode: Class 1
Measuring range Reflectorless: 0.3 to 800m (1.0 to 2,624ft)
Measuring range Reflective Sheet: RS90N-K: 1.3 to 500M (4.3 to 1,640ft), RS50N-K: 1.3 to 300m (4.3 to 980ft), RS10N-K: 1.3 to 100m (4.3 to 320ft)
Measuring Range Mini Prism: CP01: 1.3 to 2500m (4.3 to 8200ft), OR1PA: 1.3 to 500m (4.3 to 1640ft)
Measuring Range One AP Prims: 1.3 to 5000m (4.3 to 16,400ft) under good conditions 6000m (19,685 ft.)
Display Resolution: Fine / Rapid: 0.001m (0.01ft / 1/8in) Tracking: 0.01m / 0.01m (0.1ft / 1/2in)
Accuracy Reflectorless: (2 +2ppm x D) mm
Accuracy Reflective sheet: (2 + 2ppm x D) mm
Accuracy AP/CP Prism: (1.5 + 2ppm x D) 1.5mm
Measuring time: Fine = 0.9s (initial 1.5s), Rapid = 0.6s (initial1.3s), Tracking = 0.4s (initial 1.3s)
Interface and Data Management
Display / Keyboard: Graphic LCD 192 x 80 dots, backlight, contrast adjustment / Alphanumeric keyboard /28 keys with backlight
Control Panel Location: On both faces (Second Display is Optional)
Data Storage Internal Memory: Approx. 50,000 points
Data Storage Plug-in memory device: USB flash memory (max. 32GB)
Interface: Serial RS-232C, USB2.0 (Type A, for USB Flash Memory)
Bluetooth: Bluetooth Class 1.5, Ver. 2.1 + BR, EDR, LE, BT4.1 Operating range: up to 10m (98.42ft)
General
Laser Pointer: Coaxial red laser using EDM beam
Guide Light: Green LED (524 nm) and Red LED (626 nm), Operating Range: 1.3 to 150m (4.3 to 490 ft)
Levels Graphic: 6’ (Inner Circle)
Levels Circular level (on tribrach): 10’ / 2mm
Levels Plate Level: Regional Dependent
Plummet Optical: Magnification 3x, Minimum focus: 0.3 m (11.8 in) from tribrach bottom
Plummet Laser: Red laser diode (635 nm ± 10 nm), Beam Accuracy <1.0 mm R 1.3 M, Class 2 Laser Product
Dust and water protection: IP66 (IEC 60529:2001)
Operating temperature: -20 to 60°C (-4 to 140°F)
Size with handle: 183(W)x 174(D)x 348(H)mm (7.20(W)x 6.85(D)x 13.70(H)in) (On Single Face)
Instrument Height: 192.5mm (7.58in) from tribrach mounting surface
Weith with battery & tribrach: Approx. 5.3kg (11.68lb)
Power Supply
Battery: Li-ion rechargeable Battery BDC46C
Operating time (20°C): Approx. 28 hours

Click to enlarge

Bluetooth – Wireless communication date delivered instantly to your data collector
Typica Battery life 28 hours
IP66 dust and waterproof
Dual-axis compensation
5,000 meters (16,400ft) range to single prism

More Product Details What's Included Download Brochure

Compare

Add to wishlist

Add to quote

free shipping
Ships Out within: 24-48 Hours

Recommended Accessories

Sokkia SX Traverse Kit – Kit includes TR-101 Tribrach, AP41 Adapter, AP01-AR Kit, Carrying case.

free shipping 24-48 Hours

$1,732.25

Sokkia 210165200 SX Traverse Kit – Kit includes TR-101 Tribrach, AP41 Adapter, AP01-AR Kit, Carrying case. This is for “leap

Add to cart

Quick view

Sokkia Economy 8.5′ Prism Pole with locking Knob in Dual Graduations

$137.00

Sokkia 724200 Economy 8.5′ Prism Pole with locking Knob in Dual Graduations

Sokkia Diagonal Eyepiece 27 (DE27) Magnification 30x

$585.00

Sokkia 210150025 DE27 diagonal eyepiece for Topcon ES, OS, & GM total stations; Sokkia IM, FX, CX, SX, and DX

Overview
In The Box
Specification
Customer Review
Shipping & Returns

Overview

The Sokkia iM-100 (Intelligent Measurement Total Station) includes all the capabilities you require at a reasonable cost. Your most complex survey plan or as-built project requirements will be met.
You receive best-in-class precision up to 5,000 m with a prism and up to 800 m in reflectorless mode, fast, accurate, and powerful EDM technology, and a battery life of up to 28 hours. The iM-100 is prepared to work as hard as you do in the field.
Bluetooth equipped wireless communication delivers data instantly to your Bluetooth-equipped data collector.
