Leica

Leica MC200 Depthmaster Machine Mount Laser Receiver with Carrying Case

MPN#: 742685
Click to enlarge
Leica
  • Works with any Rotating Laser
  • Fast Easy set-up done in minutes
  • Built-in Plumb indication provides greater accuracy
  • Ideal for any Excavator or Back-Hoe
  • Shake to Wake technology - Turn the unit back on without leaving the cabin
  • Fast and Easy to learn and operate
  • Varitey of mounting Options
  • Bright Day time Visible LED lights
More Product DetailsWhat's IncludedDownload Brochure

Select Options

Clear
Compare
Add to wishlist
Add to quote
free shipping
Ships Out within: 24-48 Hours
Overview

Make use of your dipstick as a measurement device!

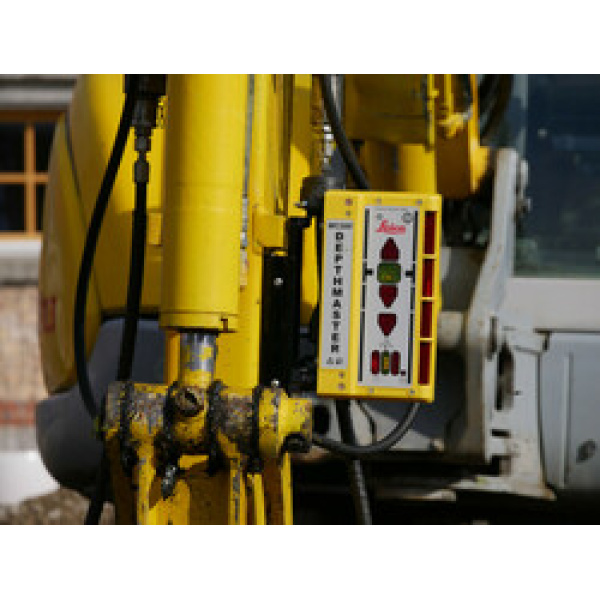

Leica Geosystems’ Leica MC200 Depthmaster is intended for digging applications when just visual control is necessary. It may be mounted on the dipper stick and converts it into a measuring device that works with any rotating laser. The Leica Depthmaster reception area has a 200° angle. Even on the brightest of days, it is possible to observe the intensity of the LED cluster of indicator lights, which shows the on grade position in relation to the lasers beam plane. Because vertical alignment is necessity for correct measurements, grade control will be more accurate thanks to its innovative internal vertical control technology.

In The Box
Specification
  • Accuracy
  • Fine Mode: ±1/6” (±4 mm)
  • Coarse Mode: ±1/2” (±12 mm)
  • Sensor Reception Area
  • Vertical Reception: 8.3” (210 mm)
  • Horizontal Reception: 200°
  • Batery Type: NiMH, rechargeable battery
  • Battery Life: Greater than 48 hours of use
  • Battery Saving Features: Automatic stand-by after 5 minutes of non-use, complete shut off after 1 1/2 hours
  • Weight: 5.216 lbs. (2,3kg)
  • Dimension: 10 x 5.7 x 3” (254 x 145 x 76 mm)
  • Mounting Options:
  • Clamp-On Bracket: Round 2” (50 mm) / Square 1 1/2“ (38 mm)
  • Magnetic Mounting: Any flat ferrous surface
  • Magnet Strength: Pulling Force 450 lbs. (220 kg)
  • Magnet Weight: 5.3 lbs. (2.4 kg)
  • Plumb Indicator: Yes
  • Shake to Wake: Automatically turns back on when machine begins to move again
