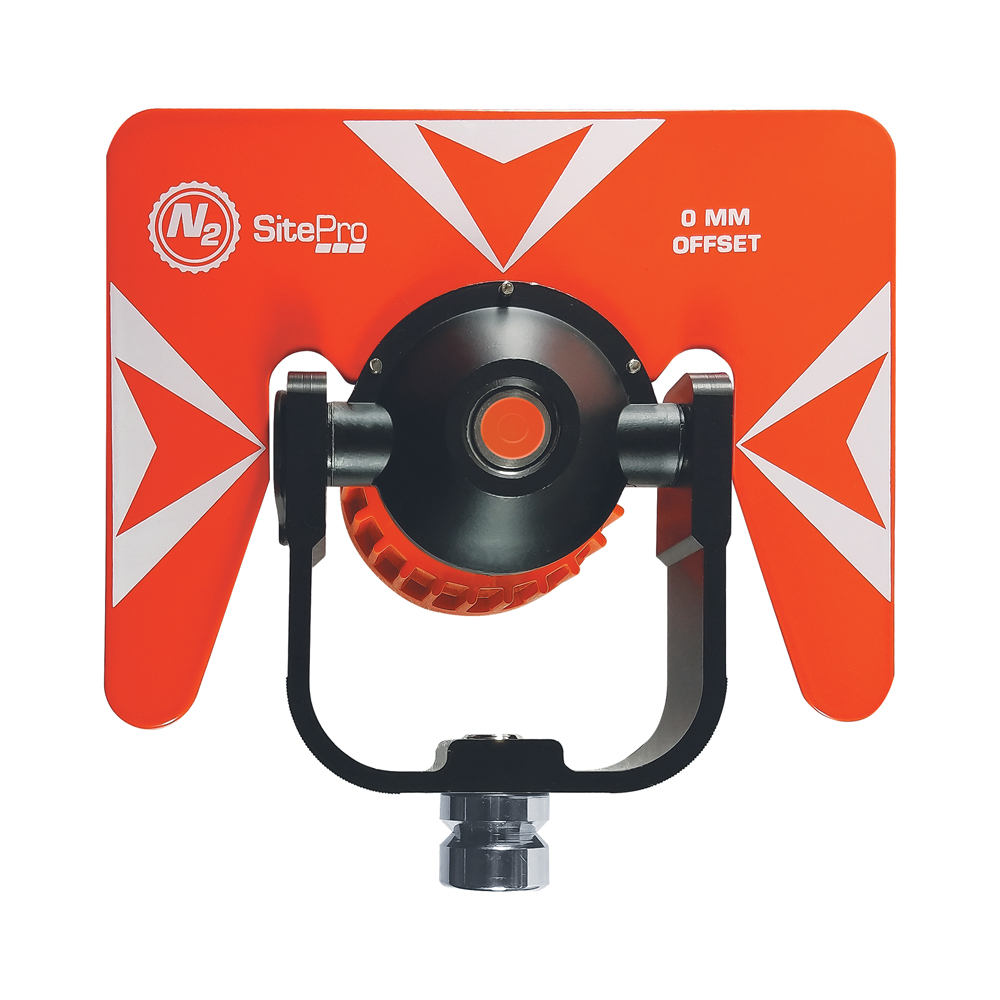

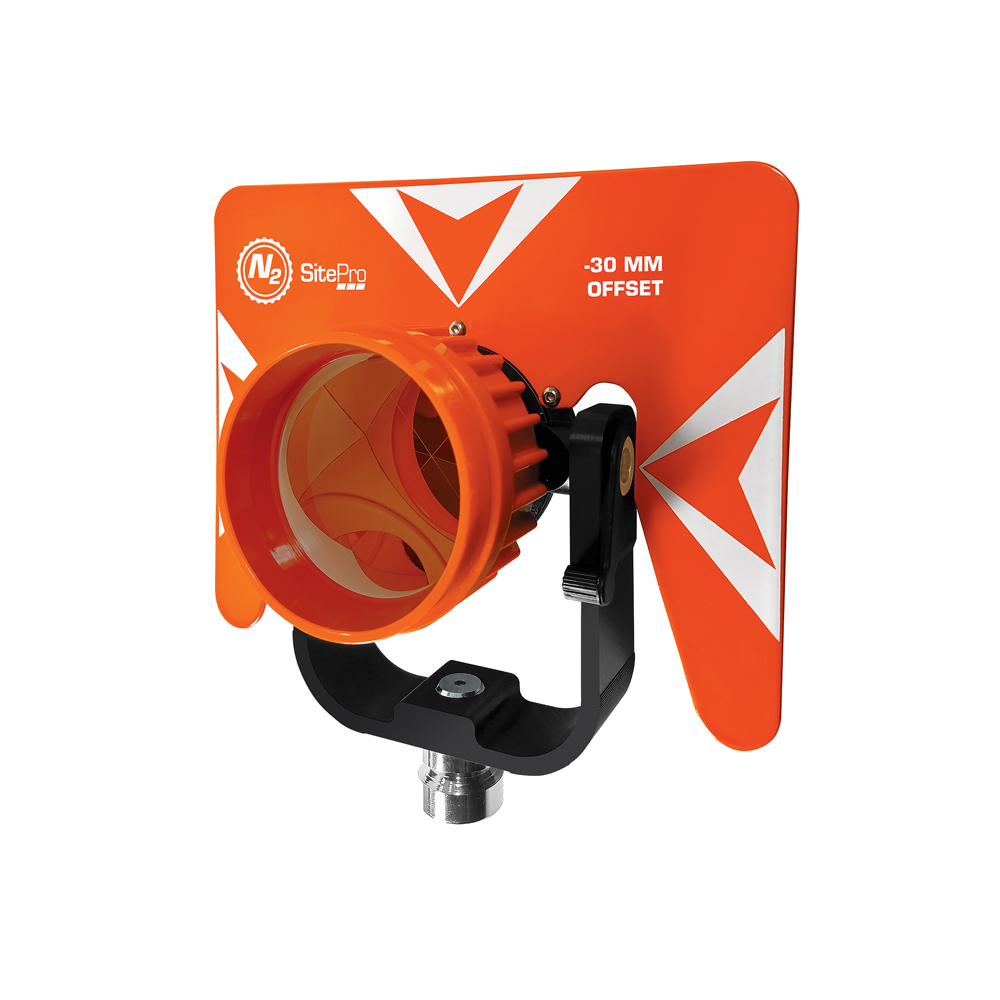

9300N 0/-30mm Single Tilting Nitrogen-Filled Prism System, Orange

MPN#: 03-9300N-O
Click to enlarge
SitePro

Description

The advanced SitePro 9300 nitrogen (N2) sealed 0/-30mm prism system features a single tilting assembly with front lever locking mechanism to secure in position. This hi-performance prism system, precisely positioned in hi-grade aluminum holder ensures accurate measurement and is best for surveying. Special formulated thermo-plastic resin provides protection and longevity. Dual-sided aluminum target 6.9″x5.5″ (17.6 cm x 14 cm)
  • 62 mm precision ground glass, up to 2 arc second accuracy
  • Nitrogen sealed prism canister
  • Height of the prism in the holder is 100 mm
  • Front lever locking mechanism to secure prism in position
  • 0/-30 mm offset constant
  • Special formulated thermo-plastic resin provides protection and longevity
  • Dual-sided aluminum target 6.9″ x 5.5″ (17.6 cm x 14 cm)
  • 5/8-11 stainless steel bayonet adapter (female thread)
More Product DetailsWhat's Included

$168.28

: $226.60

Compare
Add to wishlist
Add to quote
Quick Shipping
Ships Out within: 24-48 Hours
Overview

The advanced SitePro 9300 nitrogen (N2) sealed 0/-30mm prism system features a single tilting assembly with front lever locking mechanism to secure in position. This hi-performance prism system, precisely positioned in hi-grade aluminum holder ensures accurate measurement and is best for surveying. Special formulated thermo-plastic resin provides protection and longevity. Dual-sided aluminum target 6.9″x5.5″ (17.6 cm x 14 cm)

In The Box
  • Prism System
  • Prism Cap
Specification
  • 62 mm precision ground glass, up to 2 arc second accuracy
  • Nitrogen sealed prism canister
  • Height of the prism in the holder is 100 mm
  • Front lever locking mechanism to secure prism in position
  • 0/-30 mm offset constant
  • Special formulated thermo-plastic resin provides protection and longevity
  • Dual-sided aluminum target 6.9″ x 5.5″ (17.6 cm x 14 cm)
  • 5/8-11 stainless steel bayonet adapter (female thread)
