Prisms

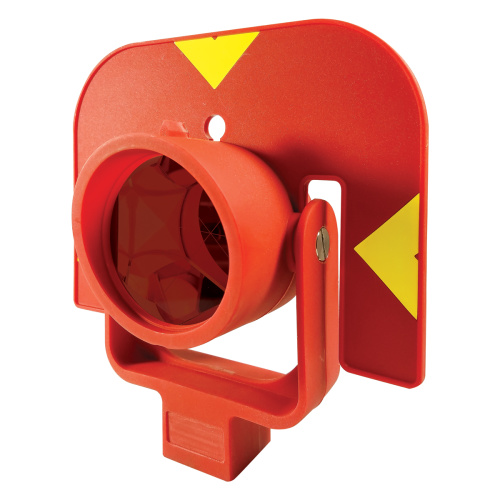

Leica-Style Prism System
24-48 Hours

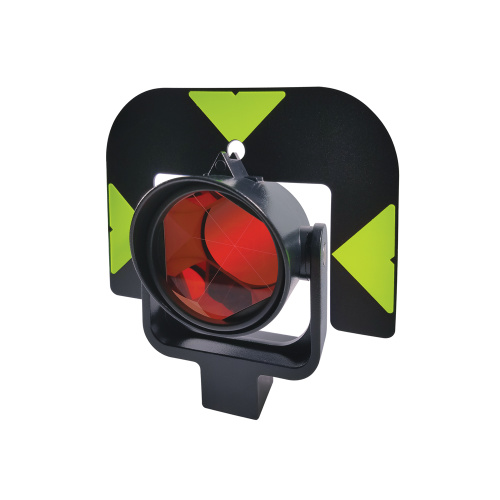

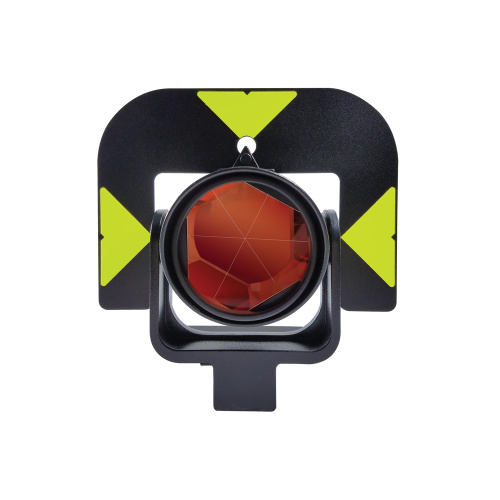

LPR121 Swiss-Style Pro Precision Circular Prism System
24-48 Hours

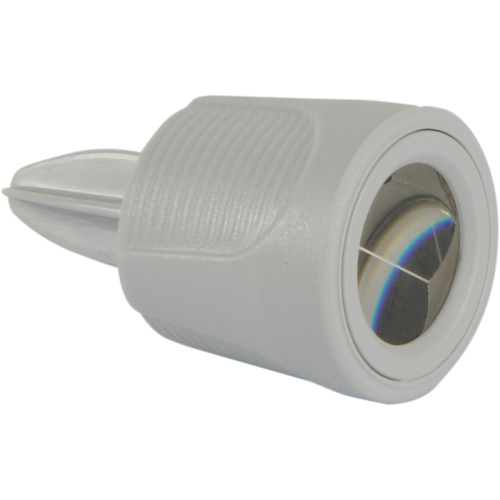

RSMP10 Mini Prism 12.7 mm with Peak
24-48 Hours
The RSMP10 mini prism allows surveyors to easily and quickly take measurements in cracks, gaps and corners. Fixed dimensions give the surveyor the exact path from the point of measurement to the base of the housing or the tip of the spike. In forensics, prisms are used for the exact surveying of bullet holes. PLEASE NOTE: For precise measurements, the prism must be directly aligned with the surveying instrument! When using the mini prisms for surveying settle- ment, the spikes can be removed and thus be inserted or glued into the smallest cracks or holes. On façades, historical buildings, supports and many other objects, monitoring is possible with measuring points that are barely identifiable for the general public. On concrete or masonry objects, small holes can be drilled to countersink the prisms flush with the surface.

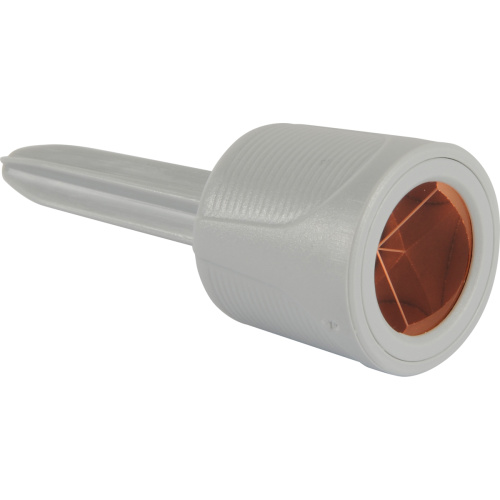

RSMP12 Mini Prism 17.5 mm with Peak
24-48 Hours
The RSMP12 mini prism allows surveyors to easily and quickly take measurements in cracks, gaps and corners. Fixed dimensions give the surveyor the exact path from the point of measurement to the base of the housing or the tip of the spike. In forensics, prisms are used for the exact surveying of bullet holes. PLEASE NOTE: For precise measurements, the prism must be directly aligned with the surveying instrument! When using the mini prisms for surveying settle- ment, the spikes can be removed and thus be inserted or glued into the smallest cracks or holes. On façades, historical buildings, supports and many other objects, monitoring is possible with measuring points that are barely identifiable for the general public. On concrete or masonry objects, small holes can be drilled to countersink the prisms flush with the surface.

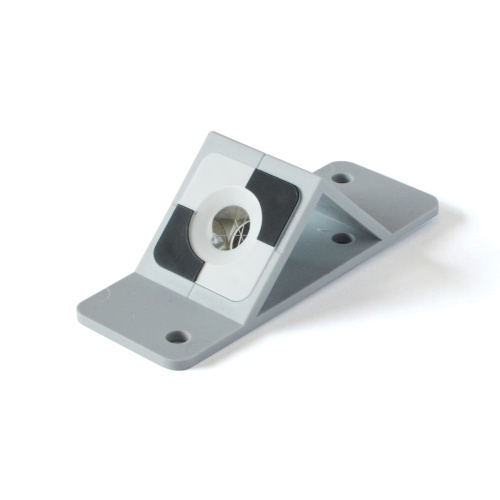

RSMP15 Angle Plate with Mini Prism 12.7 mm
24-48 Hours
The RSMP15 mini-prism sticks quickly and easily even to difficult surfaces, e.g. glass and marble façades, historic buildings, steel girders, rails, gas and oil pipelines, etc. or can be fixed with dowels and screws. When using robotic total stations: Permanent settling monitoring can be carried out during the building work, Settling measurements are possible on railway tracks while under the load of rail traffic, Bridges and other structures can be monitored even more quickly and precisely.
RSMP290 Rotatable Tilting Mini Prism 17.5 mm
24-48 Hours
These prisms can be easily stuck on or fixed with dowels and screws even on difficult bases such as, for example, glass and marble facades, historic buildings and gas and oil pipelines. When using tachymeters and total stations: The prism can always be aligned accurately with the measuring instrument The prism can be turned in a radius of 360°, making it possible to use The same survey point from almost all directions Bridges, facades and other objects can be monitored even more quickly and more accurately When using robotic total stations permanent settlement measurements can be carried out during the construction With Mini-prism RSMP290, in the ATR mode ranges of 300 m to 500 m can be achieved. The ranges are dependent on the type of instrument used and are affected by the weather and environmental conditions. By aiming at already known measuring points ranges of up to 1,000 m can be achieved with robotic total stations. For measurements in manual mode depending on the focus, ranges of approx. 200 m can be obtained.
Prism-Mini Rotating, Tilt 17.5 Magnetic, Red
24-48 Hours
These prisms can be easily stuck on or fixed with dowels and screws even on difficult bases such as, for example, glass and marble facades, historic buildings and gas and oil pipelines. When using tachymeters and total stations: The prism can always be aligned accurately with the measuring instrument The prism can be turned in a radius of 360°, making it possible to use The same survey point from almost all directions Bridges, facades and other objects can be monitored even more quickly and more accurately When using robotic total stations permanent settlement measurements can be carried out during the construction With Mini-prism RSMP290, in the ATR mode ranges of 300 m to 500 m can be achieved. The ranges are dependent on the type of instrument used and are affected by the weather and environmental conditions. By aiming at already known measuring points ranges of up to 1,000 m can be achieved with robotic total stations. For measurements in manual mode depending on the focus, ranges of approx. 200 m can be obtained.

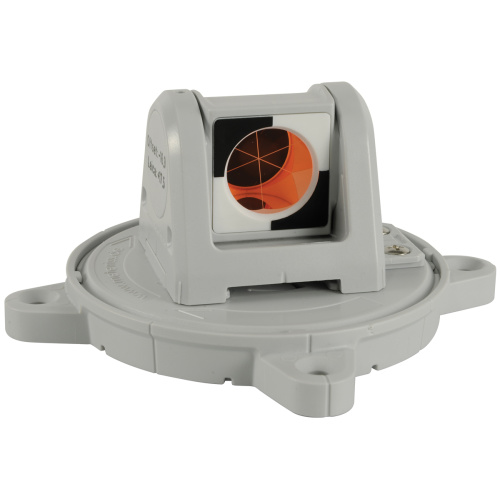

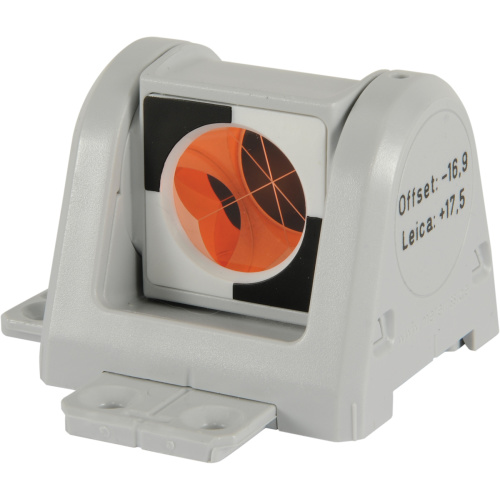

RSMP390-G Rotatable Tilting Mini Prism 25.4 mm, Grey
24-48 Hours
These prisms can be easily stuck on or fixed with dowels and screws even on difficult bases such as, for example, glass and marble facades, historic buildings and gas and oil pipelines. A magnetic version of the base plates is also available for easy installation on steel structures. When using tachymeters and total stations: The prism can always be aligned accurately with the measuring instrument The prism can be turned in a radius of 360°, making it possible to use the same survey point from almost all directions Bridges, facades and other objects can be monitored even more quickly and more accurately. When using robotic total stations permanent settlement measurements can be carried out during the construction. With Mini-prism RSMP390, in the ATR mode ranges of 500 m to 700 m can be achieved. The ranges are dependent on the type of instrument used and are affected by the weather and environmental conditions. By aiming at already known measuring points ranges of up to 1,000 m can be achieved with robotic total stations. For measurements in manual mode depending on the focus, ranges of approx. 200 m can be obtained.

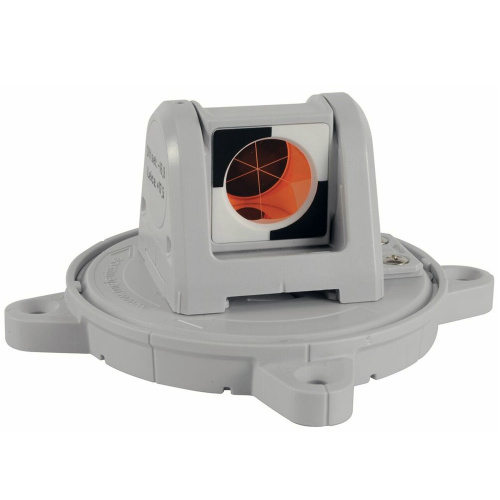

RSMP390M-G Rotatable Tilting Mini Prism 25.4 mm Magnetic, Grey
24-48 Hours
These prisms can be easily stuck on or fixed with dowels and screws even on difficult bases such as, for example, glass and marble facades, historic buildings and gas and oil pipelines. A magnetic version of the base plates is also available for easy installation on steel structures. When using tachymeters and total stations: The prism can always be aligned accurately with the measuring instrument The prism can be turned in a radius of 360°, making it possible to use the same survey point from almost all directions Bridges, facades and other objects can be monitored even more quickly and more accurately. When using robotic total stations permanent settlement measurements can be carried out during the construction. With Mini-prism RSMP390, in the ATR mode ranges of 500 m to 700 m can be achieved. The ranges are dependent on the type of instrument used and are affected by the weather and environmental conditions. By aiming at already known measuring points ranges of up to 1,000 m can be achieved with robotic total stations. For measurements in manual mode depending on the focus, ranges of approx. 200 m can be obtained.
Double Right Angle Prism
24-48 Hours

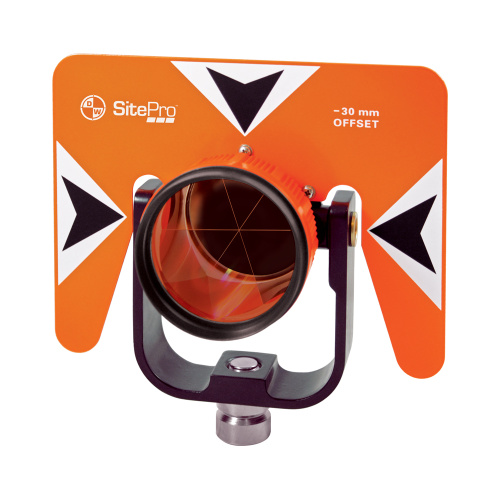

1010-CC Single Prism System, Copper Coated, Orange
24-48 Hours
The SitePro 1010-series tilting single prism system features a canister-type 2-1/2" (62.5mm) prism, all-metal holder and 5.5 x 7-inch (14 x 17.8 cm) target. Can be mounted in either 0 or -30mm offset positions with 115mm tilting axis height. Fully compatible with leading manufacturers. Heavy-duty padded prism case (included) protects prism during transport and storage.
